Product Details
Features
– Premium Material: GB 304 stainless steel sheet metal forming, beautiful and durable.
– Flexible Directional Control: Brake lever steering can be set to one-way or two-way (optional).
– Multiple Control Modes: Supports manual and automatic operation (optional).
– Device Compatibility: Can mount a variety of control devices including metal security gates, IC/ID cards, barcode cards, etc.
– Ultra-Quiet Operation: Utilizes a third-generation silent mechanical design for smooth operation with no noise impact.

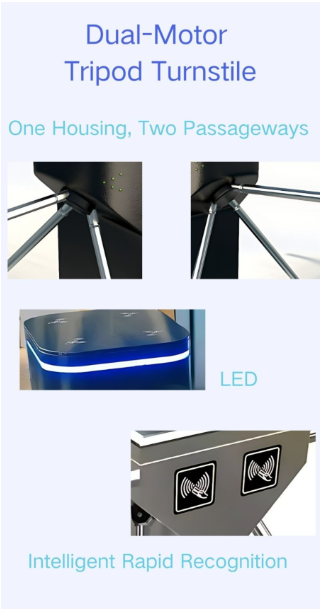

– Clear Indicators: Directional design of ultra-bright LED lights to clearly indicate passage status.
– Automatic Access: The reader automatically unlocks the brake lever to a certain angle after verification, gently bringing people through.
– Access Memory Function: Remembers the number of consecutive authorized pedestrians and keeps the gate open until all have passed.
– Emergency Drop-Arm: In the event of a power outage, the gate automatically drops the brake lever to facilitate evacuation, meeting fire safety requirements (automatic type).
– Remote Control: RS485 interface allows access via computer or TCP to RS485 for remote control of the gates.
– Auto Reset: If a valid card is not swiped within a specified time, the gate automatically resets to the original position, canceling access.
Advantages & Benefits

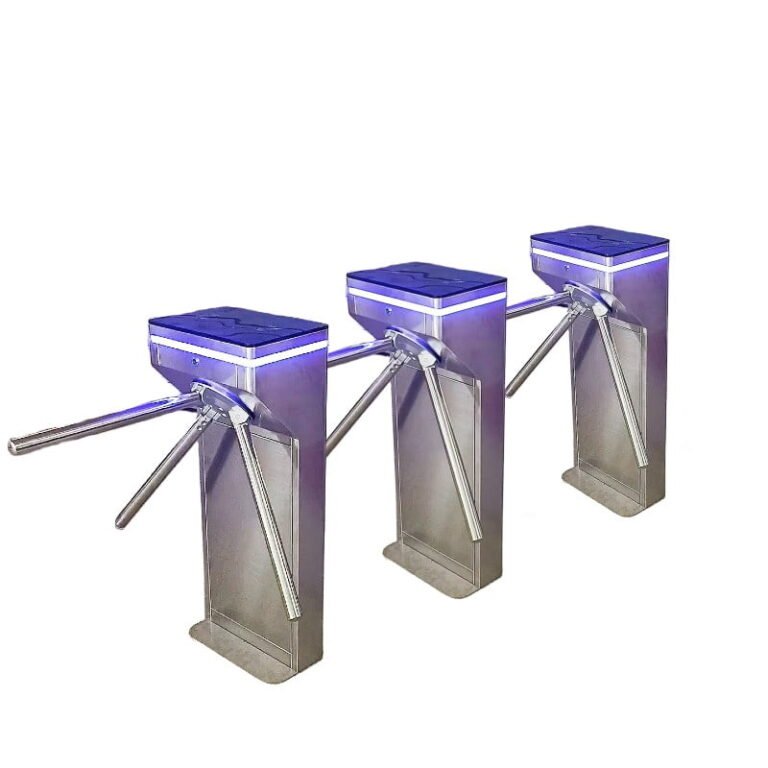

– Enhanced User Experience: Ultra-bright LED passage indicators provide clear directional guidance, making navigation effortless.
– Whisper-Quiet Operation: The third-generation silent mechanical design ensures smooth operation with no noise, ideal for quiet environments like offices and hospitals.
– Energy Efficient: Low power consumption with only 6W on standby and 18W during operation, reducing long-term electricity costs.
– Uncompromised Safety: Compliant with fire safety requirements. The automatic drop-arm feature ensures smooth, safe evacuation during emergencies.
– High Durability & Low Maintenance: Constructed with SUS304 stainless steel, offering excellent corrosion resistance with an MCBF of 1 million cycles.
– Flexible Integration: Easily integrates with various access control systems (RFID, fingerprint, barcode, etc.) via standard RS485 communication.

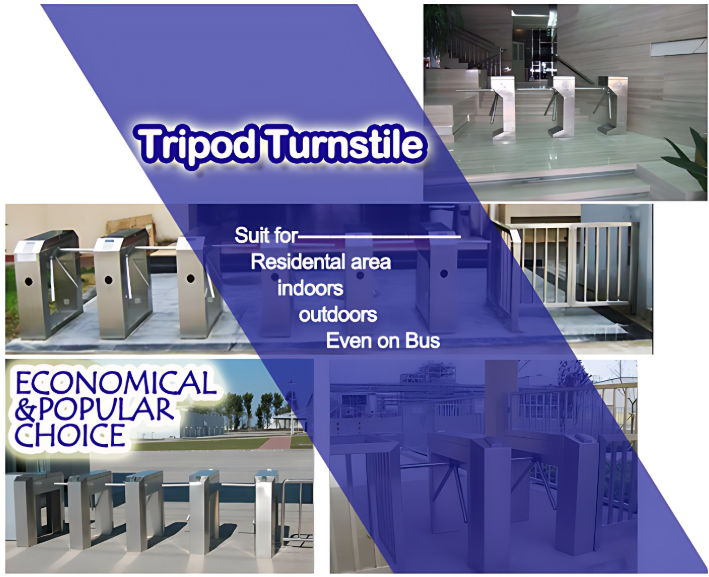

Application Scenarios
– Office Buildings and Business Parks
– Residential Areas and Apartment Complexes
– Government Buildings and Public Institutions
– Factories and Industrial Parks
– Schools and Universities
– Indoor and covered outdoor lobbies and entrances
Technical Specifications
– Power Requirements: AC 100V to 120V or 200V to 240V, 50/60Hz
– Power Consumption: Running: 18W, Standby: 6W
– Working Temperature: -28 °C to 60 °C
– Working Humidity: 5% to 80% (Non-condensing)
– Speed of Throughput: RFID: Maximum 30/minute, Fingerprint: Maximum 25/minute
– Lane Width: 500-650 mm
– Dimension (L*W*H): 520 * 310 * 1010 mm
– Dimension with Packing (L*W*H): 570 * 365 * 1080 mm
– Net Weight: 36 kg
– Weight with Packing: 50 kg
– LED Indicator: Supports
– Cabinet Material: SUS304 Stainless Steel
– Lid Material: SUS304 Stainless Steel
– Barrier Material: SUS304 Stainless Steel
– Barrier Movement: Rotation
– Emergency Mode: Supports
– Security Level: Medium
– MCBF: 1 million
– Options / Accessories: Counter, SUS316 Cabinet and Lid, Remote Control
– Warranty: 2 years
FAQ
1. Q: What’s the main difference between this LED tripod turnstile and a standard one?
A: This model features ultra-bright LED passage indicators for clearer directional guidance, a third-generation silent mechanical design for smoother and quieter operation, and supports both manual and automatic control modes. It also has a lower power consumption — only 6W on standby and 18W during operation.
2. Q: What happens during a power outage? Does it affect safety?
A: In the event of a power outage, the brake lever will automatically drop to allow free passage, meeting fire safety requirements and ensuring smooth evacuation. Once power is restored, it returns to normal operation. This feature is available on the automatic version.
3. Q: What material is it made of? Is it suitable for outdoor use?
A: Both the cabinet and lid are made of SUS304 stainless steel, offering excellent corrosion resistance and durability. It operates in temperatures ranging from -28°C to 60°C and humidity up to 80% (non-condensing), making it suitable for both indoor and covered outdoor applications.
