Introduction

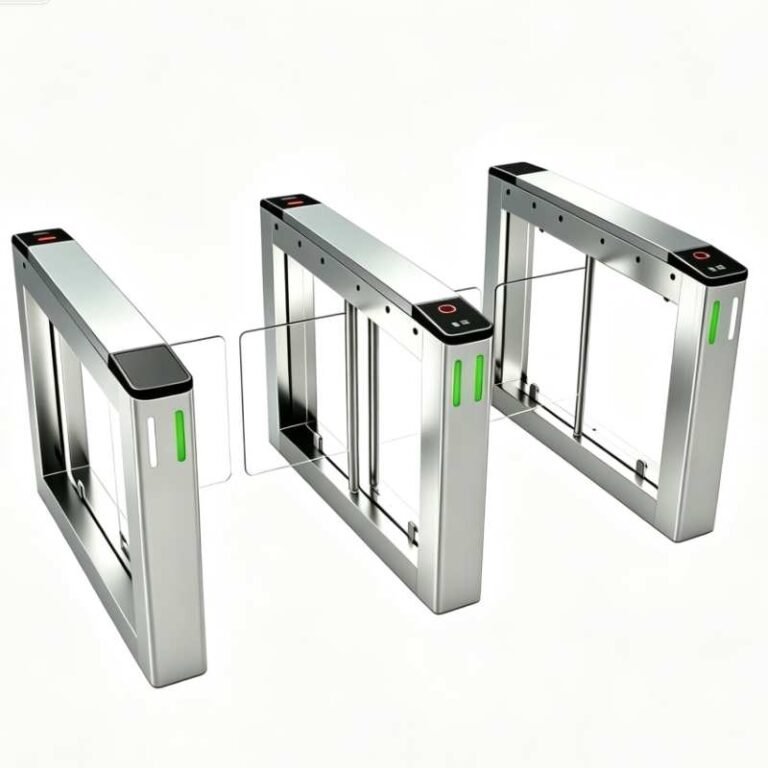

The HBST2008 Swing Turnstile is an intelligent access control gate designed for smart passage management. It integrates precision machinery, electronics, microprocessor control, and ID recognition technology, making it compatible with IC/ID cards, barcodes, fingerprints, and face recognition devices. With a 304 stainless steel housing and acrylic barrier, the HBST2008 is widely used in stations, airports, factories, office buildings, smart communities, hotels, and other public venues.
Features
· Model: HBST2008
· 304 stainless steel housing, top cover 1.1mm, body 0.8mm, finely processed
· Acrylic barrier, durable and elegant
· Brushless motor, single 60W / dual 120W
· Adjustable opening/closing speed: 0.8–3s
· 6 pairs of industrial-grade infrared sensors
· Infrared + current dual anti-pinch protection
· Tailgating and reverse passage alarm
· Auto-reset (1–60s adjustable, default 10s)
· Auto-open on power failure, meets fire safety
· V3.0 main control board
· Supports one-way or two-way passage
· Multiple passage modes adjustable
Advantages
· Dual anti-pinch protection – mechanical + infrared, force ≤2Kg, safer for users
· Anti-collision motor – clutchless design, silent and efficient
· Fail-safe design – opens on power failure, closes after power recovery
· Self-diagnostic function – zero-bit self-inspection, easier maintenance
· High compatibility – integrates with access control, ticketing, biometric, and LPR systems
· Flexible installation – suitable for indoor and outdoor use, -20°C to +70°C
· OEM/ODM available – customizable logo, housing color, barrier, and functions
Benefits
· Improves passage efficiency and security
· Reduces manual supervision and operating costs
· Ensures user safety with dual anti-pinch design
· Reliable performance in various environments
· Easy to maintain and integrate
· Customizable to match specific project needs
· Long service life, reducing replacement costs
Application
· Office buildings and corporate campuses
· Metro stations, airports, and transport hubs
· Factories and industrial parks
· Smart communities and residential areas
· Hotels, clubs, and commercial centers
· Government agencies and institutions
· Any venue requiring intelligent pedestrian access control
FAQ：
Q1: What is the passage width of this turnstile?
A: The passage width is available in 600mm or 900mm (optional).
Q2: What is the opening and closing speed?
A: The opening and closing time is 0.8–3 seconds, adjustable.
Q3: What material is used for the housing? What is the thickness?
A: The housing is made of 304 stainless steel, with a top cover thickness of 1.1mm and body thickness of 0.8mm, finely processed.
Q4: What material is the barrier made of?
A: The barrier is made of acrylic.
Q5: What type of motor is used? What is the power rating?
A: It uses a brushless motor, with single motor power of 60W and dual motor power of 120W.
Q6: What is the input voltage and power requirement?
A: The input voltage is 110–220V, 50Hz.
Q7: Does it have anti-pinch protection?
A: Yes. It features dual anti-pinch protection – infrared sensor and current detection – ensuring safe passage.
Q8: What happens if someone tries to enter illegally or tailgates?
A: It has tailgating and reverse passage alarm functions. An alarm will sound automatically when any abnormal entry occurs.
Q9: Can it work outdoors? What is the temperature range?
A: Yes, it is suitable for both indoor and outdoor use, with an operating temperature range of -20°C to +70°C.
Q10: What is the main control board model?
A: It uses the V3.0 main control board.
Q11: How many sensors does it have?
A: It is equipped with 6 pairs of industrial-grade sensors, durable and long-lasting.
Q12: Does the motor have anti-collision protection?
A: Yes. It features an anti-collision motor (clutchless design), which is silent and efficient.
Q13: Are the passage modes adjustable?
A: Yes. Multiple passage modes are adjustable to meet various scene requirements.
Q14: Do you offer customization services?
A: Yes. We provide comprehensive OEM/ODM customization services, including but not limited to:
Housing color
Logo printing
Barrier material and length
Passage width (600mm or 900mm optional)
Control system functions
Passage modes
Custom designs and samples are welcome. Feel free to contact us to discuss your specific requirements.
Q15: How about your company’s actual strength?
A: We are among the top 5 in the turnstile field in China. We have more than 50 employees, an R&D team of 4 people, 1 office, and 2 factories.
Q16: How about the quality of your products?
A: We offer the highest level of quality with the most competitive price. We choose German, Japanese, and domestic leading brand accessories to ensure product quality from the source. At our factory, we implement 5S management to strictly control the production process.
Q17: How do you handle after-sales service?
A: We provide lifetime online technical support via email, video, phone, etc. We have English-speaking engineers for direct and convenient communication.
Q18: What is the payment method?
A: For standard products: 30% deposit, 70% balance payment before shipment.
Q19: What is the lead time?
A: We usually have stock for hot-selling standard models. Regular products need 7-10 working days. Customized products need 15-20 working days.
Q20: How long is your warranty period?
A: Two-year warranty + lifetime technical support.
Q21: How about your packaging?
A: Seaworthy wooden case + foam protection.
