Product Details
Features

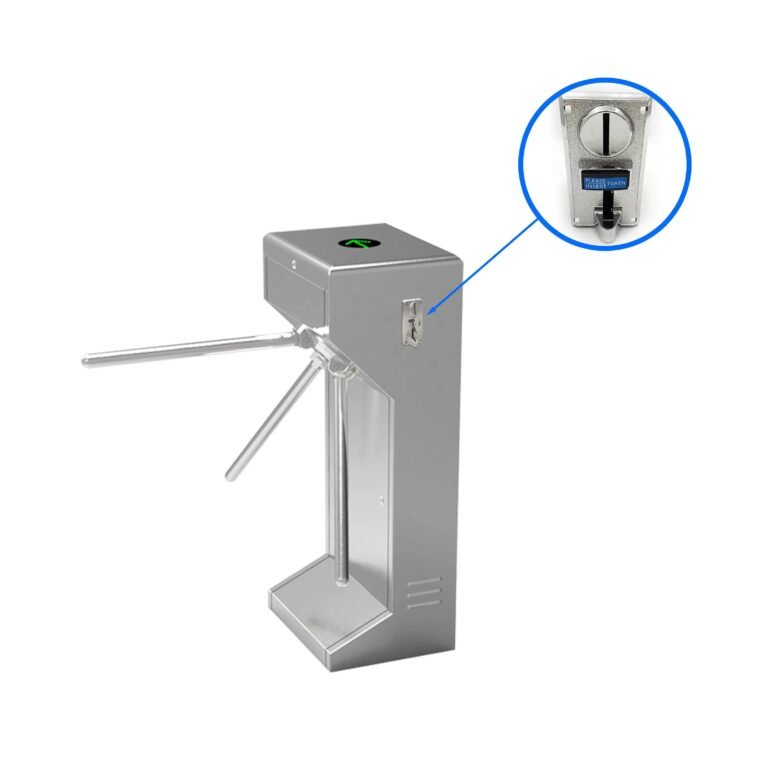

– Built-in Coin Slot Reader: Enables automated, self-service paid access without staff supervision.
– High-Quality Materials: Cabinet and lid are made of SUS304 Stainless Steel; barrier is made of Tempered Glass (optional Acrylic) for durability and elegance.
– Advanced Safety: Equipped with 6 pairs of infrared sensors for anti-pinch and anti-tailgating protection.
– Multiple Communication Interfaces: Supports RS485 and TCP/IP, allowing seamless integration with RFID, QR code, facial recognition, and ticketing systems.
– Emergency Ready: Supports automatic drop arm during power outages for immediate evacuation, meeting fire safety requirements.
– Flexible Control Modes: Supports both automatic and manual operation (remote control or manual release).
– All-Weather Performance: Operates efficiently in temperatures from -28°C to 60°C and humidity up to 95% (non-condensing).
Advantages & Benefits
– Cost-Effective Operation: Eliminates the need for ticketing staff, significantly reducing long-term labor costs while enabling 24/7 operation.
– Revenue Protection: The turnstile physically prevents entry without a coin, ensuring accurate fee collection and preventing fare evasion.
– Enhanced Security & Safety: 6 pairs of infrared sensors prevent unauthorized tailgating and protect users from pinching. The emergency drop-arm function ensures safe evacuation during emergencies.
– Easy Integration & Upgrades: Standardized RS485 and TCP/IP interfaces make it easy to integrate with existing access control, ticketing, or payment systems.
– Long-Term Durability: High-quality SUS304 stainless steel construction resists corrosion and wear, making it ideal for both indoor and outdoor public environments.
– Customizable Branding: Supports custom colors (Black, White, etc.) and customized logos to match your facility’s branding.
Application Scenarios
– Subway Stations and Bus Terminals
– Tourist Attractions and Amusement Parks

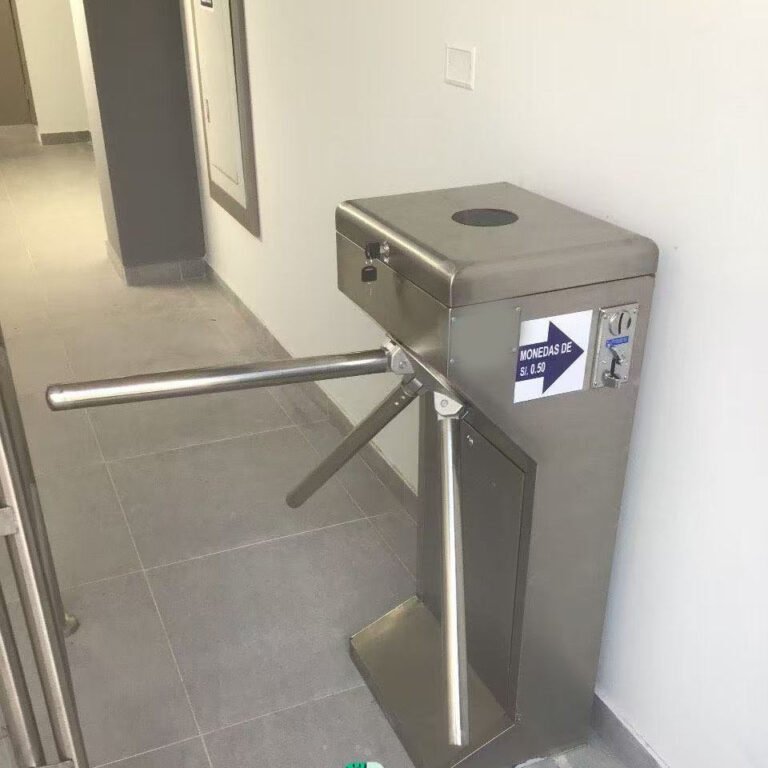

– Public Restrooms and Showers
– Sports Venues and Stadiums
– Commercial Complexes and Shopping Centers
– Any paid-entry public facility requiring automated access control
FAQ
1. Q: What’s the difference between this coin-operated tripod turnstile and a standard one?
A: This model features a built-in coin slot reader, making it ideal for paid-access scenarios such as subway stations, bus terminals, tourist attractions, and public restrooms. Users insert a coin to gain entry — simple, cost-effective, and requires no staff supervision.
2. Q: Can it connect to an access control system?
A: Yes. It supports RS485 and TCP/IP communication interfaces, allowing integration with RFID card readers, QR code scanners, facial recognition, and ticketing systems. It can also be operated via remote control or manual release in case of emergency.
3. Q: What material and color options are available?
A: The housing is available in SUS304 stainless steel, SUS316 stainless steel, or carbon steel. Standard color is stainless steel finish, with custom colors (black, white, or others) also available. The logo can also be customized upon request.
4. Q: What is the package dimension and weight?
A: The packing dimension is 1480 * 340 * 1270 mm (for 2pcs), and the total gross weight with packing is 150 kg.
5. Q: What is the warranty period?
A: This model comes with a 2-year warranty covering manufacturing defects and motor components.
Technical Specifications
– Product Type: Tripod Gate
– Sensing Method: Slot Reader
– Application: Access Control System
– Movement: Single Movement
– Control Mode: Automatic
– Communication Interface: RS485, TCP/IP
– Power Requirements: AC 100 to 120V / 200 ~ 240V, 50 / 60Hz
– Working Temperature: -28°C to 60°C
– Working Humidity: 20% to 95% (non-condensing)
– Lane Width: 635mm (optional ≤ 850)
– Lane Length: 600-1000 mm
– Infrared Sensor: 6 pairs
– Cabinet Material: SUS304 Stainless Steel
– Lid Material: SUS304 Stainless Steel + Acrylic
– Barrier Material: Tempered Glass (optional: acrylic)
– LED Indicator: Support
– Emergency Mode: Support
– Color Options: Stainless Steel, Black, White, Customized
– Logo: Support Customized

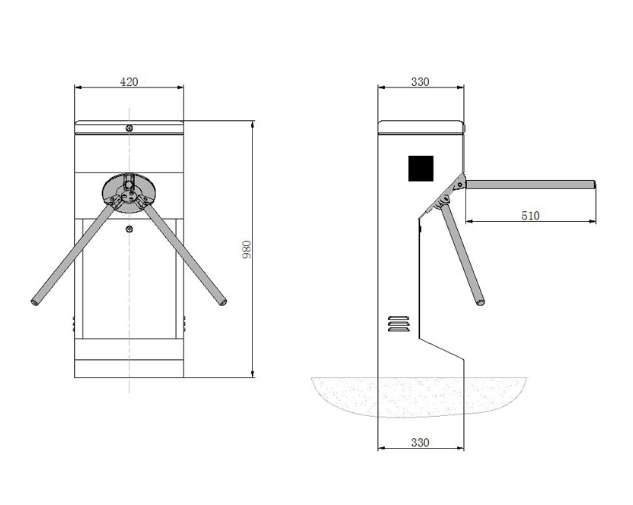

– Dimension (L*W*H): 1200 * 180 * 1000 mm
– Dimension with Packing (L*W*H): 1480 * 340 * 1270 mm (2pcs)
– Weight with Packing: 150 kg
– Shipping Packaging: Carton & Plywood Case
– Warranty: 2 years
